StuG III Ausf.G

描述

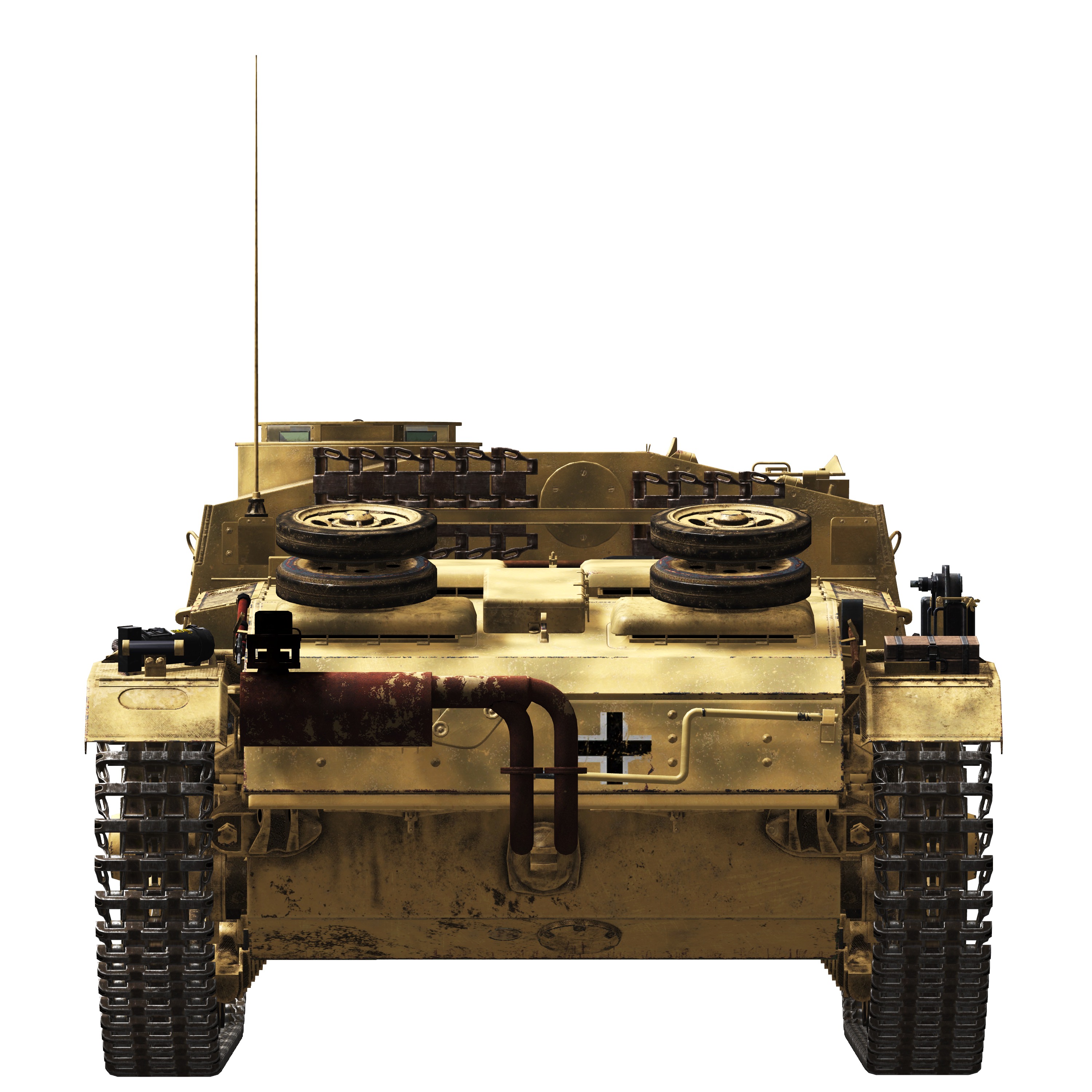

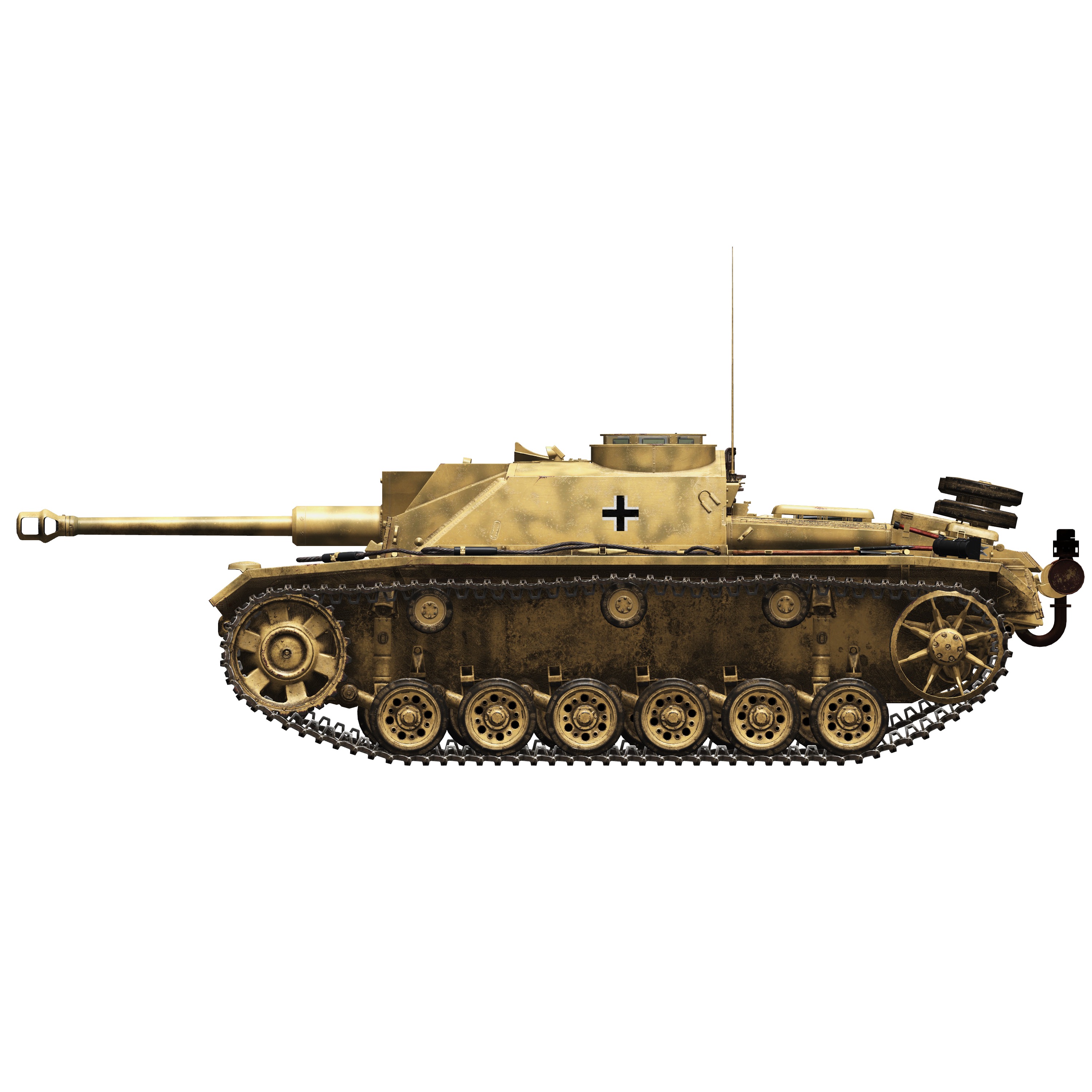

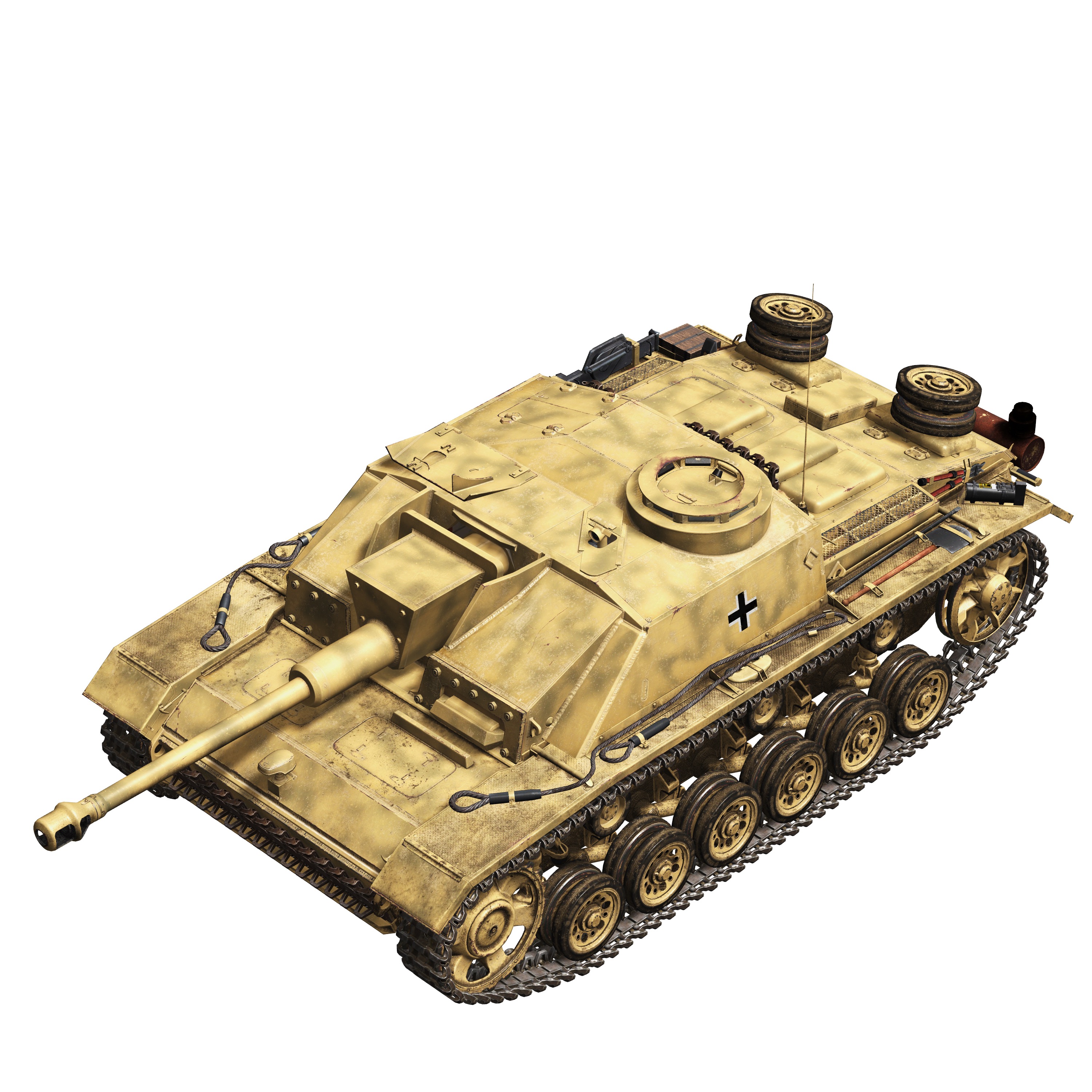

This self-propelled assault gun Sturmgeschütz III Ausführung G was armed with 75 mm StuK 40 L/48 gun. Ausf.G was one of the last modifications, but the most numerous: 7800 SPG in total since December 1942 till April 1945. Compared to the previous one, it had a longer gun barrel (L/48 instead of L/43) and additional armour sheets installed in the hull and cabin front. The SPG modeled in our sim was built at MIAG factory using the Pz.Kpfw. Ausf.M chassis produced by MAN factory.

The most apparent visual difference was the addition of side armor plates, “Schürzen”, which were attached to the hull sides. They were added mainly to protect the tank from massed AT rifle fire which was dangerous for thinner armored sides. Not being able to stop an AP bullet, this additional armour destabilized it or caused its fragmentation before it could hit the main armored hull.

The tank could be equipped with six mortars mounted on the turret and designed to shoot smoke grenades at a distance of about 80 meters.

The long-barrelled 75 mm gun can reliably engage Soviet tanks at distances up to 1 km. However, the artillery periscopic gunsight was less convenient for quick direct firing than telescopic gunsights installed on tanks.

Late StuG III modifications were equipped by infantry MG34 machinegun stored in the fighting compartment. To fire it, the loader had to get out of his hatch, raise the armored shield and set the machinegun up in one of the two positions - for firing at air or ground targets. Six one-shot smoke mortars could be also installed.

Unladen weight: 23300 kg.
Length: 6.3 m.
Width: 3.29 m.
Height: 2.2 m.
Clearance: 385 mm.

Engine: Maybach HL 120TRM, petrol.
Maximum power: 300 HP at 3000 RPM.
Maximum RPM: 3000 RPM.
6 speed gearbox.

Maximum road speed:
1-st: 4.8 kph.
2-nd: 9.2 kph.
3-rd: 15.5 kph.
4-th: 23.5 kph.
5-th: 33.2 kph.
6-th: 42.8 kph.
Reverse: 5.9 kph.

Maximum offroad speed: 18 kph.

Fluids:
Internal fuel tanks capacity: 320 l.
Engine oil system capacity: 25 l.
Summer engine coolant: 100 l. of 40% glysantin
Winter engine coolant: 100 l. of 60% glysantin
Endurance range: 155 km.
Maximum oil consumption: 2 l/h.

Armour:
Gun mantlet: 50mm rolled armour.
Cabin front, middle: 30mm rolled armour.
Cabin front, lower: 50мм + 30mm rolled armour.
Hull front, upper: 30 mm rolled armour.
Hull front, middle: 50 mm rolled armour.
Hull front, lower: 50 мм + 30 mm rolled armour.
Hull front, bottom: 30 mm rolled armour.
Cabin rear: 30 mm rolled armour.
Hull rear, upper: 30 mm rolled armour.
Hull rear, middle: 50 mm rolled armour.
Hull rear, lower: 30 mm rolled armour.
Cabin roof: 10 mm rolled armour.
Cabin rear: 15 mm rolled armour.
Sides: 30 mm rolled armour.
Bottom: 15 mm rolled armour.

Additional armor sheets:
5 mm rolled armor for additional protection against AT rifles.

Main gun: rifled, 7,5 cm Stu K 40 L/48.
Barrel length: 55
Elevation: +17°..-8°
Azimuth: +10°..-10°.
Ammo: up to 54 rounds
Usable rate of fire: 10 rounds per minute.
Turret drive: mechanical.

Gun ammunition:
7.5 cm Pzgr. 39 armor piercing high explosive (APHE): 6.8 kg, 750 m/s, 104 mm at 500 m.
7.5 cm Pzgr. 40 armor piercing composite rigid (APCR): 4.1 kg, 930 m/s, 150 mm point blank.
7.5 cm Gr.38 HL/С high explosive anti-tank (HEAT): 4.57 kg, 450 m/s, 104 mm.
7.5 cm SprGr.34 high explosive (HE): 5.74 kg, 550 m/s, 660 g. explosives.

Gunsight settings for SprGr.34:
(Distance - point number of lower scale):
0000m - 000
0100m - 002 4100m - 110
0200m - 004 4200m - 114
0300m - 005 4300m - 118
0400m - 007 4400m - 123
0500m - 009 4500m - 127
0600m - 011 4600m - 132
0700m - 013 4700m - 137
0800m - 015 4800m - 142
0900m - 017 4900m - 146
1000m - 019 5000m - 151

1100m - 021 5100m - 157
1200m - 023 5200m - 162
1300m - 025 5300m - 167
1400m - 027 5400m - 173
1500m - 029 5500m - 179
1600m - 032 5600m - 185
1700m - 034 5700m - 190
1800m - 036 5800m - 197
1900m - 039 5900m - 203
2000m - 041 6000m - 210

2100m - 044 6100m - 216
2200m - 046 6200m - 223
2300m - 049 6300m - 230
2400m - 052 6400m - 237
2500m - 055 6500m - 244
2600m - 057 6600m - 252
2700m - 060 6700m - 260
2800m - 063 6800m - 268
2900m - 066 6900m - 276
3000m - 069 7000m - 284

3100m - 073 7100m - 293
3200m - 076 7200m - 302
3300m - 079 7300m - 311
3400m - 082 7400m - 320
3500m - 086
3600m - 090
3700m - 094
3800m - 098
3900m - 102
4000m - 106

Machineguns: 7.92 mm Maschinengewehr 34.
Bullet mass: 11.5 g.
Muzzle velocity: 855 m/s.
Armour pentration at 100 m: 11 mm.
Rate of fire: 900 rounds per minute.
12 magazines, 50 rounds per magazine (600 rounds).

Gunsights:
Sfl ZF 1a gunner periscopic sight, field of view 8°.

Radio equipment:
VHF Fu 5 transceiver with additional Fu 2 receiver.
4 intercom terminals.

修改

穿甲榴弹

7，5 cm Pzgr.39

炮弹上装有爆炸弹头。

对抗装甲目标效果好。击穿时对目标内部造成比穿甲弹（AP）更大伤害，但是榴弹（HE）装药可能过早引爆（比如用于对抗间隙装甲板时）

质量 6.8 kg，炸药质量 18 g.

当从7.5cm Stu K 40 L/48火炮发射时：
炮口初速：750 m/s，近距离装甲穿深 117 mm
500m时：装甲穿深 104mm，速度 691 m/s，下坠高度 2.4m
1000m时：装甲穿深 92mm，速度 636 m/s，下坠高度 10.0m
2000m时：装甲穿深 72mm，速度 537 m/s，下坠高度 44.8m

榴弹

7，5 cm SprGr.34

对抗软目标、无装甲和轻装甲目标效果好。

质量 5.74 kg，炸药质量 660 g.

直接命中装甲穿深 20mm，对轻型车辆有效杀伤距离3m

当从7.5cm Stu K 40 L/48火炮发射时：
炮口初速：550 m/s
500m时：速度 509 m/s，下坠高度 4.5m
1000m时：速度 473 m/s，下坠高度 18.5m
2000m时：速度 405 m/s，下坠高度 80.9m

破甲弹

7，5 cm Gr.38 HL/С

破甲弹有成型高爆聚能战斗部装药

它们的穿甲能力不会随射程的增加而降低，但准确性却会降低，因为弹速较低，而类似的动能穿甲弹通常在近距离具有较高的装甲穿透能力。

质量4.57 kg，炸药质量530 g，装甲穿深 104 mm

当从7.5cm Stu K 40 L/48火炮发射时：
炮口初速：450 m/s
500m时：速度 328 m/s，下坠高度 7.8m
1000m时：速度 278 m/s，下坠高度 38.1m
2000m时：速度 244 m/s，下坠高度 200.4m

次口径穿甲弹

7，5 cm Pzgr.40

装有次口径穿甲弹芯的炮弹。在近距离对抗重装甲目标效果好。

7.5cm Pzgr.40是一种复合弹药 - 硬（钨合金）弹芯在由较软的钢组成的弹体里（用于炮管内密封）

质量：4.1 kg，弹芯口径28 mm

当从7.5cm Stu K 40 L/48火炮发射时：
炮口初速：930 m/s，近距离装甲穿深 150 mm
500m时：装甲穿深 128mm，速度 832 m/s，下坠高度 1.6m
1000m时：装甲穿深 108mm，速度 739 m/s，下坠高度 10.0m
2000m时：装甲穿深 75mm，速度 573 m/s，下坠高度 44.8m

额外装甲

附加防护：车身和炮塔附上5mm装甲板。
添加它们主要是为了保护坦克免受大规模反坦克步枪火力的伤害，这对装甲较薄的一侧来说是危险的。
虽然无法阻停穿甲子弹，这种附加装甲可以使其失稳或导致其碎裂，然后才击中主装甲保护车体。

Smoke Mortars

Installation of 6 external single-shot smoke mortars.
Schnellnebelkerze 39 (Nb K S 39) smoke grenade
Range: 80 m
Smoking time: 3 min
